CNC fencing mesh welding line GWC 2500 manufacturer from China China TJK Machinery Co., Ltd.

Payment Terms:	T/T
Place of Origin:	Beijing, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: GWC 2500

Delivery Date: 2 MONTHS

Raw Material: Steel Bar

Extra Services: Welding / Brazing

Certification: CE

Brand Name: TJK

Means of Transport: Ocean

Power: Cnc

Machine Type: Coiling Bending Machine

Automation: Automatic

Material / Metal Processed: Carbon Steel

Model: GWC 2500

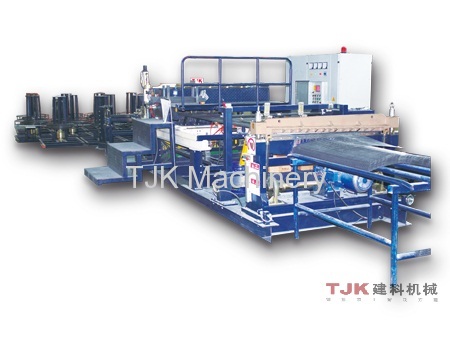

CNC fencing mesh welding line GWC 2500
Description:
Products Introduction : The steel wire mesh welding line may produce livestock breeding

Products Introduction : The steel wire mesh welding line may produce livestock breeding mesh and suitable for producing small specification of mesh and small diameter of wire processing , with quickly, accurate and reliable welding.

CHARACTERISTIC

1. CNC wheel-step design to provide high accurate mesh grid (patent).

2. Electrode lift system to extend electrode life (patent).

3. Line wire loop and balance system to ensure wire mesh accuracy.

4. Line wire vertical straightening system to provide high quality (patent).

5. Unique high speed air cylinder used on welding electrode to provide high reliability.

6. Welding pressure steplessly adjustation to apply multiple wire diameter (patent).

7. High speed mesh cutting system, 120 times per min.

8. Automatically high speed cross wire feeding system(patent).

9. Automatic mesh turning, stacking and conveying system.

10. Direct circuit to enhance welding quality (patent).

11. Control systems: YASKAWA, SCHNEIDER, MOLLER.

TECHNICAL DATA

Model	GWC-900XM		GWC-1200XM		GWC-1500XM
Installed power(kva)	5*25		6*25		7*25
System coltagte(v)	380V 50Hz		380V 50Hz		380V 50Hz
Control voltage(v)	24V		24V		24V
Power cable cross-sectional area	370mm²+125mm²		395mm²+135mm²		3120mm²+150mm²
Max.mesh width	900		1200		1500
Line wire spacing	≥25mm steplessly adjustable
Cross wire spacing	≥20mm steplessly adjustable
Wire diameter(mm)	1.8-3	1.8-3		1.8-3
Max.welding capacity	3+3	3+3		3+3
Max.wlding speed(time/min)	30-60	30-60		30-60
Max.welding spot nos.(group)	18	18		18
Pressed air(MPa)	≥0.5	≥0.5		≥0.5
Wire feeding method	Pre-cut/off-coil
Caterconer accutracy	≤2	≤2		≤2
Raw material	Cold drawn wire,stainless wire,galvanized wire
